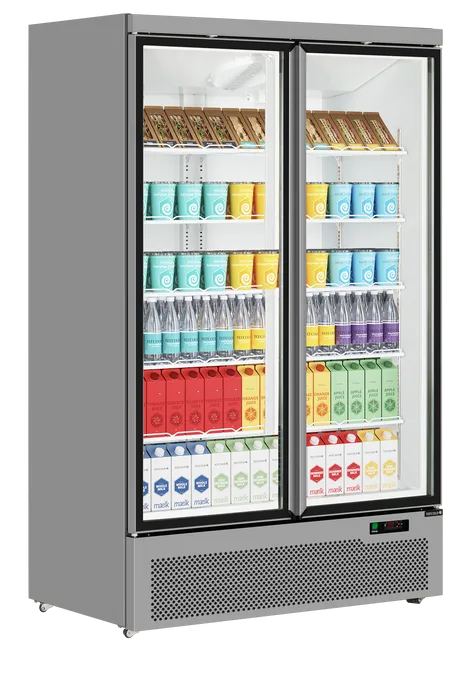

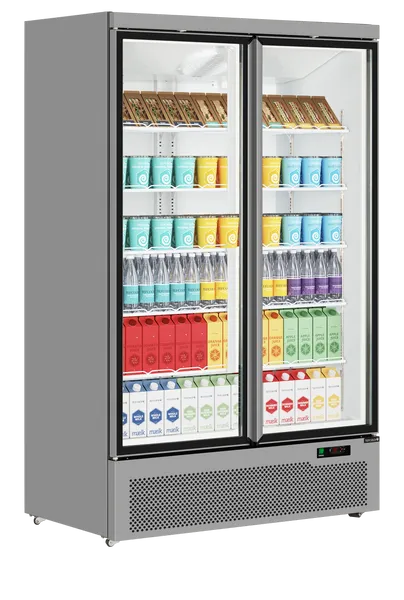

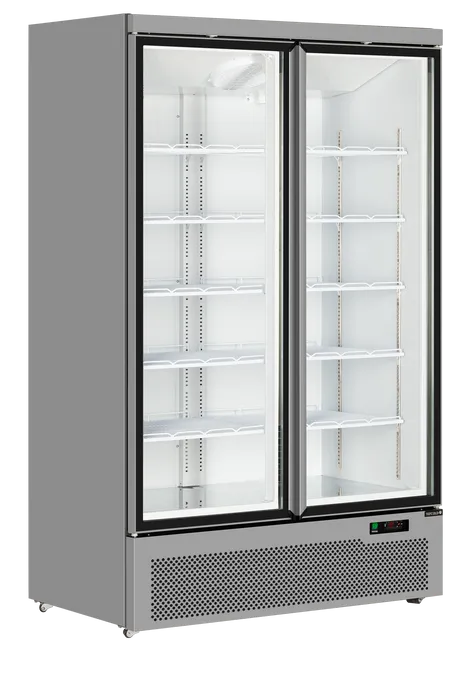

Glass Door Merchandiser

Atom Maxi C2DS

Item no.: 49821 (Substitution for )

  • Low energy consumption
  • Hinged glass doors
  • Self-closing doors
  • Double glazed doors
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling
  • Digital controller and temperature display
  • Castors
  • Freezer Option Available
Energy arrow
Product Sheet
  • Next day delivery available on product
  • Unpack & Position
    £ 38.00
  • Remove & Dispose
    £ 81.00
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -1 to +10 °C
  • Climate Class
    3
  • Gross / Net Weight
    197 / 179 kg
  • Gross / Net Volume
    1081 / 809 l
  • Cans 330 ml
    1120 pcs
  • Cans 500 ml
    672 pcs
  • Bottles 330 ml
    630 pcs
  • Bottles 500 ml PET
    560 pcs
  • Total Display Area
    1.58 m²

Design and Material

  • Castors
    4 castors
  • Exterior Finish
    Silver RAL9006
  • Interior Finish
    White
  • Interior Light
    LED
  • Door Number & Type
    2 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    10 adjustable
  • Shelf Color
    White
  • Shelf Dimensions
    566 x 480 mm
  • Max load on Shelves
    135 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic-Off Cycle
  • Refrigerant
    R290
  • Refrigerant Charge
    110 g
  • Thermometer

Power and Consumption

  • Energy Class
    B
  • Max Ambient
    25°C at 60% RH
  • Energy Consumption
    4.17 kWh/24h
  • Annual Energy Consumption
    1522 kWh/year
  • Input Power
    460 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    62 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1163 x 595 x 1568 mm
  • External Dimension (WxDxH)
    1253 x 710 x 2003 mm
  • Packed Dimension (WxDxH)
    1278 x 760 x 2090 mm
  • 40ft Container Load
    27 pcs
  • GTIN / EAN
    5708181733469
  • Product Group - Delivery services
    Group 3

Downloads

Description

Spare parts

  • 0
    Item no. 52004Mullion White
  • 0
    Item no. 52036Top Hinge Right
  • 0
    Item no. 52037Top Hinge Left
  • 0
    Item no. 52038Bottom Hinge Left
  • 0
    Item no. 52039Bottom Hinge Right
  • 0
    Item no. 52041Light Switch Green
  • 1
    Item no. 52028Top Panel Grey RAL9006
  • 2
    Item no. 52017Glass Door Left w/ Handle, Grey RAL9006
  • 3
    Item no. 52032Front Grill Grey RAL9006
  • 4
    Item no. 47642Castor
  • 5
    Item no. 52016Glass Door Right w/ Handle, Grey RAL9006
  • 6
    Item no. 47565Digital Thermostat Carel
  • 7
    Item no. 47644Evaporator Supporter
  • 8
    Item no. 47665Evaporator
  • 9
    Item no. 47629Evaporator Fan Motor
  • 11
    Item no. 47821Shelf 12mm
  • 11
    Item no. 54015Price Holder
  • 12
    Item no. 47647K-Clip
  • 13
    Item no. 47631Door Seal
  • 14
    Item no. 47667Condenser
  • 15
    Item no. 47632LED Light Left
  • 16
    Item no. 47633LED Light Right
  • 17
    Item no. 46053Fan Blade
  • 18
    Item no. 46052Fan Motor
  • 19
    Item no. 47820Compressor K480DU
  • 20
    Item no. 47583Filter Drier
  • 21
    Item no. 47638LED Driver
