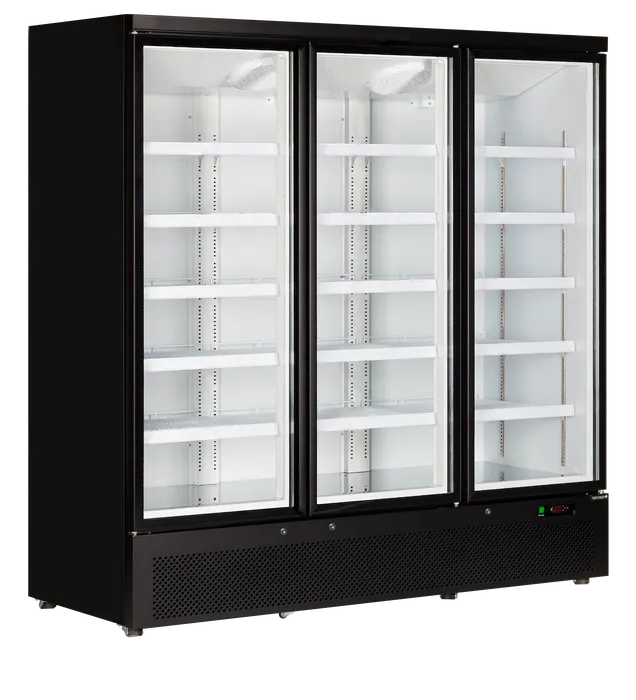

Atom Maxi C3DB

Item no.: 49729

This price is available until 30th September 2024, when you place your order directly through our website only.

Low energy consumption
Hinged glass doors
Self-closing doors
Double glazed doors
Adjustable shelves
Vertical LED interior light with switch
Ventilated cooling
Digital controller and temperature display
Castors
Freezer Option Available

Product Sheet

Technical specifications

Measures and Content

Bottles 330 ml
980 pcs
Bottles 500 ml PET
875 pcs
Cans 330 ml
1750 pcs
Cans 500 ml
1050 pcs
Climate Class
3
Gross / Net Volume
1664 / 1264 l
Gross / Net Weight
235 / 207.5 kg
Temperature Range
-1 to +10 °C
Total Display Area
2.38 m²

Design and Material

Castors
6 castors
Door Number & Type
3 hinged glass doors
Door Reversible
No
Exterior Finish
Black RAL9005
Interior Finish
White
Interior Light
LED
Max load on Shelves
135 kg/m²
Shelf Color
White
Shelf Dimensions
566 x 480 mm ; 624 x 480 mm
Shelves Number & Type
15 adjustable

Cooling and Functions

Type of Controller
Electronic
Type of Cooling
Ventilated
Type of Defrost
Automatic-Off Cycle
Refrigerant
R290
Refrigerant Charge
130 g
Thermometer

Power and Consumption

Annual Energy Consumption
1975 kWh/year
Energy Class
B
Energy Consumption
5.41 kWh/24h
Input Power
700 W
Noise Level
65 dB(A)
Voltage / Frequency
220-240/50 V/Hz

Dimensions

40ft Container Load
18 pcs
External Dimension (WxDxH)
1880 x 710 x 2003 mm
GTIN / EAN
5708181733117
Internal Dimension (WxDxH)
1790 x 595 x 1568 mm
Packed Dimension (WxDxH)
1905 x 760 x 2090 mm
Product Group - Delivery services
Group 4

Downloads

Description

3 door chiller

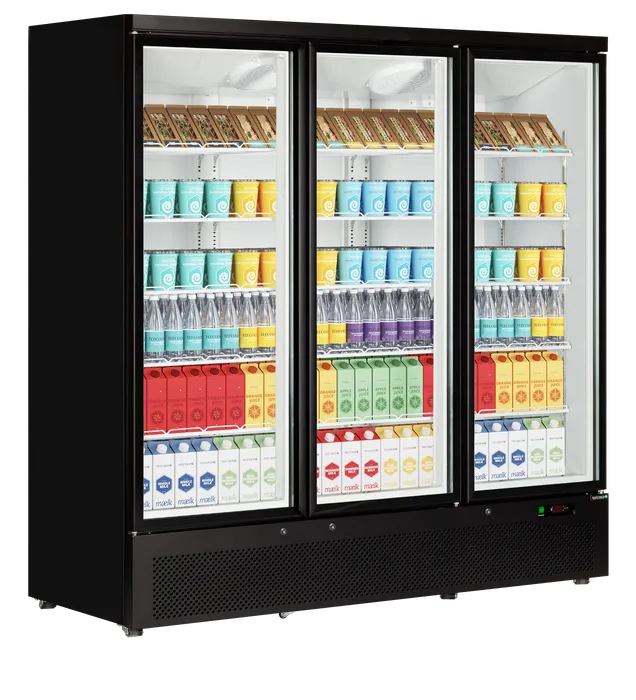

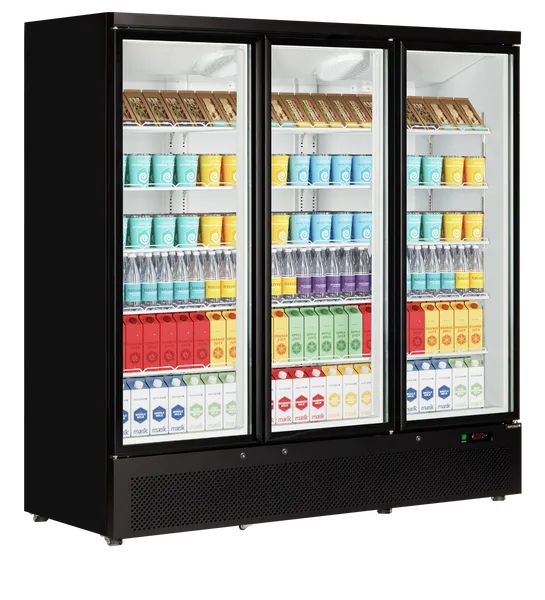

The Atom Maxi range of glass door chillers is available in 2 or 3 door options. Edge to edge "frameless" self closing glass doors together with excellent storage capacity make it ideal for all types of chilled food and drink displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a chilled food and drink selection enables extra choice. A white interior with vertical LED lighting helps present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce chilled produce to your customers. There is also a matching freezer option available.

Spare parts

0
Item no. 52004Mullion White
0
Item no. 52036Top Hinge Right
0
Item no. 52037Top Hinge Left
0
Item no. 52038Bottom Hinge Left
0
Item no. 52039Bottom Hinge Right
0
Item no. 52041Light Switch Green
1
Item no. 53197Top Panel Black RAL9005
2
Item no. 52009Glass Door Left w/ Handle, Black RAL9005
3
Item no. 51634Front Grill Black RAL9005
4
Item no. 47642Castor
5
Item no. 52008Glass Door Right w/ Handle, Black RAL9005
6
Item no. 47565Digital Thermostat Carel
7
Item no. 47644Evaporator Supporter
8
Item no. 47670Evaporator
9
Item no. 47629Evaporator Fan Motor
10
Item no. 46053Fan Blade
11
Item no. 47821Shelf 12mm
11
Item no. 47823Shelf Middle 12mm
11
Item no. 54015Price Holder
11
Item no. 54016Price Holder Middle
12
Item no. 47647K-Clip
13
Item no. 47631Door Seal
14
Item no. 47579Condenser
15
Item no. 47632LED Light Left
16
Item no. 47633LED Light Right
18
Item no. 46052Fan Motor
19
Item no. 46070COMPRESSOR
20
Item no. 47583Filter Drier
21
Item no. 47653LED Driver
