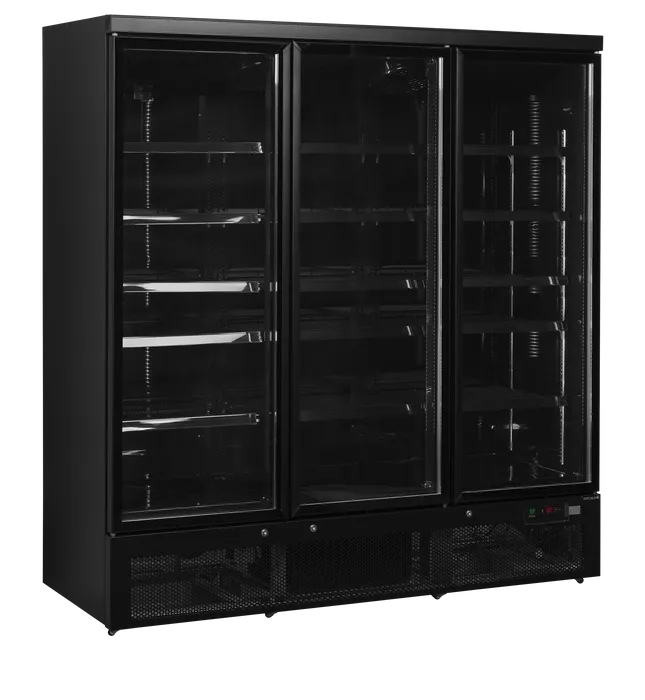

Glass Door Merchandiser

Atom Maxi C3DBB

Item no.: 54348

  • Great product presentation
  • Black interior and exterior
  • Low energy consumption

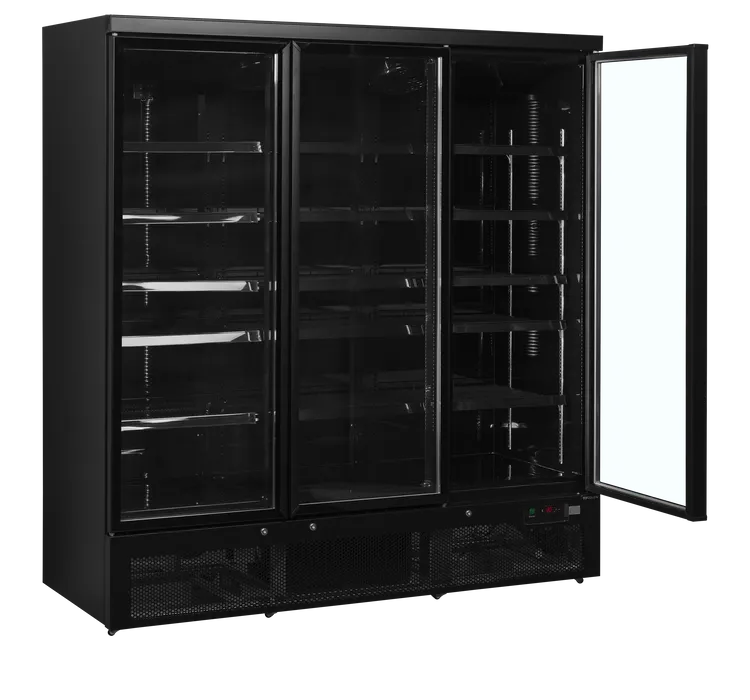

  • Self-closing glass doors
  • Double glazed tempered glass
  • Internal vertical LED light
  • Ventilated cooling
  • Adjustable shelves (split level)
  • Stainless steel base with mirror effect
  • Digital controller and temperature display
  • Freezer Option Available
Energy arrow
Product Sheet

Technical specifications

Measures and Content

  • Bottles 330 ml
    980 pcs
  • Bottles 500 ml PET
    875 pcs
  • Cans 330 ml
    1750 pcs
  • Cans 500 ml
    1050 pcs
  • Climate Class
    3
  • Gross / Net Volume
    1664 / 1264 l
  • Gross / Net Weight
    235 / 207.5 kg
  • Temperature Range
    -1 to +10 °C
  • Total Display Area
    2.38 m²

Design and Material

  • Castors
    6 castors
  • Door Number & Type
    3 hinged glass doors
  • Door Reversible
    No
  • Exterior Finish
    Black RAL9005
  • Interior Finish
    Black
  • Interior Light
    LED
  • Max load on Shelves
    135 kg/m²
  • Shelf Color
    White
  • Shelf Dimensions
    566 x 480 mm ; 624 x 480 mm
  • Shelves Number & Type
    15 adjustable

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic-Off Cycle
  • Refrigerant
    R290
  • Refrigerant Charge
    130 g
  • Thermometer

Power and Consumption

  • Annual Energy Consumption
    1975 kWh/year
  • Energy Class
    B
  • Energy Consumption
    5.41 kWh/24h
  • Input Power
    700 W
  • Noise Level
    65 dB(A)
  • Voltage / Frequency
    220-240/50 V/Hz

Dimensions

  • 40ft Container Load
    18 pcs
  • External Dimension (WxDxH)
    1880 x 710 x 2003 mm
  • GTIN / EAN
    5708181739560
  • Internal Dimension (WxDxH)
    1790 x 595 x 1568 mm
  • Packed Dimension (WxDxH)
    1905 x 760 x 2090 mm
  • Product Group - Delivery services
    Group 2

Downloads

Description

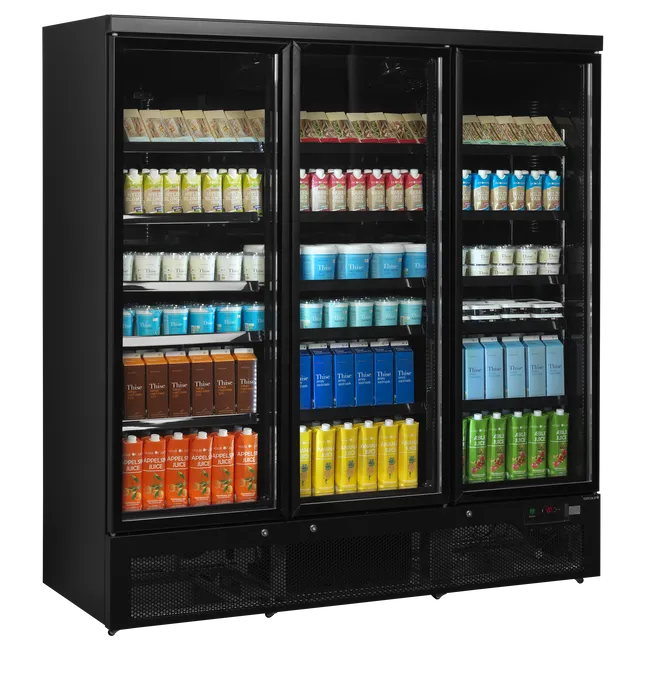

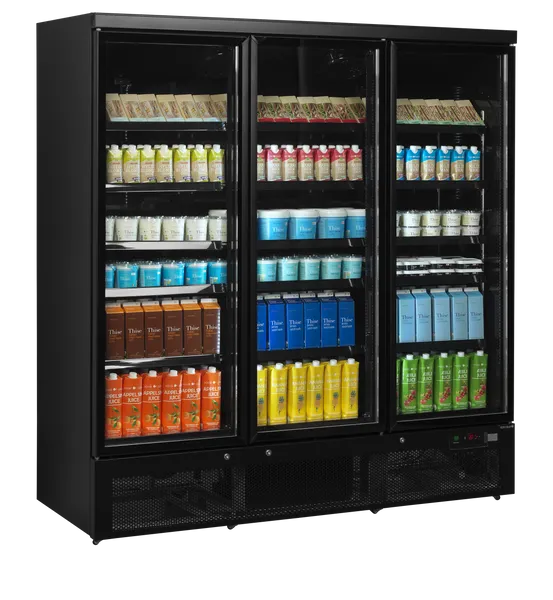

3 door chiller, black

The Atom Maxi range of black glass door chillers is available in 1, 2 or 3 door options. Edge-to-edge "frameless" self-closing glass doors together with excellent storage capacity make it ideal for all types of chilled food and drink displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a chilled food and drink selection enables extra choice. A black interior with vertical LED lighting helps present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce chilled produce to your customers. There is also a matching freezer option available.

Spare parts

  • 0
    Item no. 52036Top Hinge Right
  • 0
    Item no. 52037Top Hinge Left
  • 0
    Item no. 52038Bottom Hinge Left
  • 0
    Item no. 52039Bottom Hinge Right
  • 0
    Item no. 52041Light Switch Green
  • 0
    Item no. 54973Mullion Black
  • 1
    Item no. 53197Top Panel Black RAL9005
  • 2
    Item no. 52009Glass Door Left w/ Handle, Black RAL9005
  • 3
    Item no. 51634Front Grill Black RAL9005
  • 4
    Item no. 47642Castor
  • 5
    Item no. 52008Glass Door Right w/ Handle, Black RAL9005
  • 6
    Item no. 47565Digital Thermostat Carel
  • 7
    Item no. 54967Evaporator Supporter Black
  • 8
    Item no. 47670Evaporator
  • 9
    Item no. 47629Evaporator Fan Motor
  • 11
    Item no. 54972Shelf 12mm Black
  • 11
    Item no. 54974Price Holder Black
  • 11
    Item no. 54975Shelf Middle 12mm Black
  • 11
    Item no. 54977Price Holder Middle Black
  • 12
    Item no. 47647K-Clip
  • 13
    Item no. 47631Door Seal
  • 14
    Item no. 47579Condenser
  • 15
    Item no. 47632LED Light Left
  • 16
    Item no. 47633LED Light Right
  • 17
    Item no. 46053Fan Blade
  • 18
    Item no. 46052Fan Motor
  • 19
    Item no. 46070COMPRESSOR
  • 20
    Item no. 47583Filter Drier
  • 21
    Item no. 47653LED Driver
