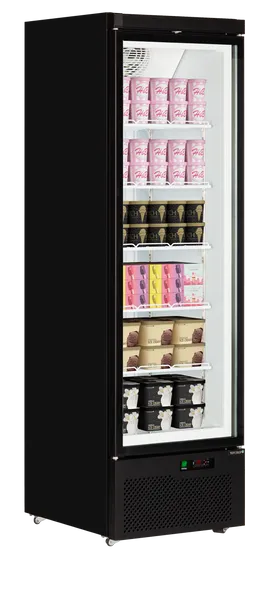

Display Freezer

Atom Maxi F1DB

Item no.: 49842

This price is available until 30th September 2024, when you place your order directly through our website only.

  • Perfect display for frozen foods
  • Low energy consumption
  • Self-closing hinged glass door
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling
  • Digital controller and temperature display
  • Castors
  • Chiller Option Available

Technical specifications

Measures and Content

  • Climate Class
    3
  • Gross / Net Volume
    560 / 390 l
  • Gross / Net Weight
    158.5 / 150 kg
  • Temperature Range
    -18 to -22 °C
  • Total Display Area
    0.84

Design and Material

  • Castors
    4 castors
  • Door Number & Type
    1 hinged glass doors
  • Door Reversible
    No
  • Exterior Finish
    Black RAL9005
  • Interior Finish
    White
  • Interior Light
    LED
  • Max load on Shelves
    140 kg/m²
  • Shelf Color
    White
  • Shelf Dimensions
    610 x 470 mm
  • Shelves Number & Type
    5 adjustable

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    85 g
  • Thermometer

Power and Consumption

  • Annual Energy Consumption
    3311 kWh/year
  • Energy Class
    C
  • Energy Consumption
    9.07 kWh/24h
  • Input Power
    600 W
  • Noise Level
    61 dB(A)
  • Voltage / Frequency
    220-240/50 V/Hz

Dimensions

  • 40ft Container Load
    45 pcs
  • External Dimension (WxDxH)
    750 x 760 x 2003 mm
  • GTIN / EAN
    5708181733636
  • Internal Dimension (WxDxH)
    630 x 580 x 1538 mm
  • Packed Dimension (WxDxH)
    775 x 775 x 2090 mm
  • Product Group - Delivery services
    Group 2

Downloads

Description

1 door display freezer

The Atom Maxi range of glass door freezers is available in 2 or 3 door options. Edge to edge "frameless" self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters for use in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice-up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.

Spare parts

  • 0
    Item no. 52036Top Hinge Right
  • 0
    Item no. 52039Bottom Hinge Right
  • 0
    Item no. 52041Light Switch Green
  • 1
    Item no. 52018Top Panel Black RAL9005
  • 2
    Item no. 52015Glass Door Black RAL9005
  • 3
    Item no. 52031Front Grill Black RAL9005
  • 4
    Item no. 47642Castor
  • 5
    Item no. 47795Digital Thermostat Carel
  • 6
    Item no. 47628Door Switch
  • 7
    Item no. 47644Evaporator Supporter
  • 8
    Item no. 49877Evaporator
  • 10
    Item no. 46053Fan Blade
  • 11
    Item no. 49878Shelf 16mm
  • 11
    Item no. 54014Price Holder
  • 12
    Item no. 47647K-Clip
  • 13
    Item no. 52002Door Seal
  • 14
    Item no. 47648Condenser
  • 15
    Item no. 46055LED RIGHT
  • 16
    Item no. 46056LED LEFT
  • 18
    Item no. 47629Evaporator Fan Motor
  • 19
    Item no. 49873Transformer
  • 20
    Item no. 47635Compressor
  • 21
    Item no. 47636Solenoid Valve Assembly
  • 22
    Item no. 47583Filter Drier
  • 23
    Item no. 47638LED Driver
