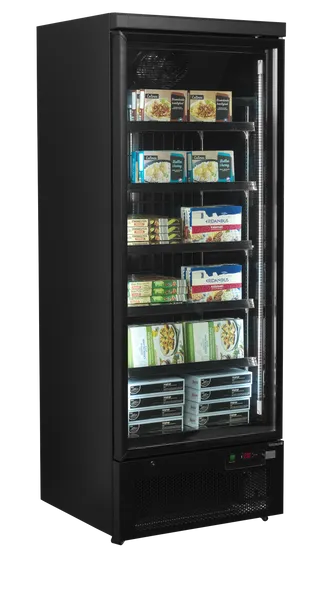

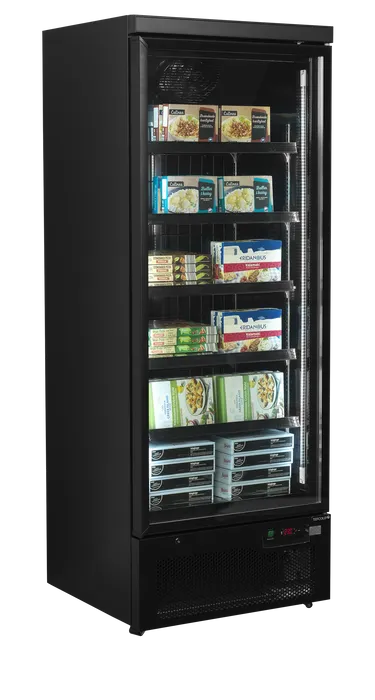

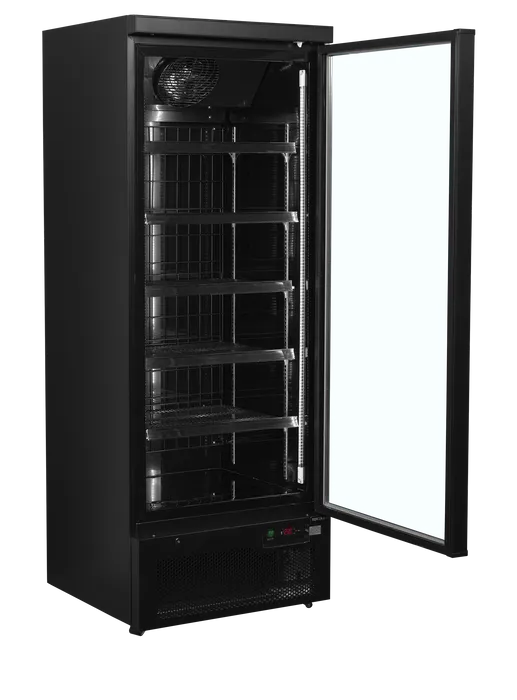

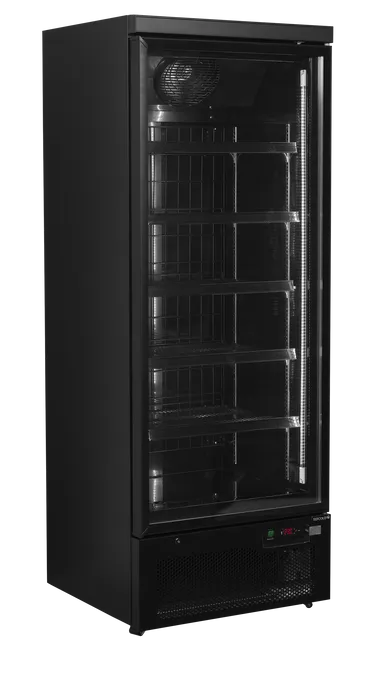

Display Freezer

Atom Maxi F1DBB

Item no.: 54343

  • Perfect display for frozen foods
  • Black interior and exterior
  • Low energy consumption
  • Self-closing heated glass door
  • Triple glazed insulated glass
  • Adjustable shelves
  • Ventilated cooling
  • Internal vertical LED light
  • Stainless steel base with mirror effect
  • Digital controller and temperature display
  • Chiller Option Available

Technical specifications

Measures and Content

  • Temperature Range
    -18 to -22 °C
  • Climate Class
    3
  • Gross / Net Weight
    158.5 / 150 kg
  • Gross / Net Volume
    560 / 390 l
  • Total Display Area
    0.84

Design and Material

  • Castors
    4 castors
  • Exterior Finish
    Black RAL9005
  • Interior Finish
    Black
  • Interior Light
    LED
  • Door Number & Type
    1 hinged glass door
  • Door Reversible
    No
  • Shelves Number & Type
    5 adjustable
  • Shelf Color
    White
  • Shelf Dimensions
    610 x 470 mm
  • Max load on Shelves
    140 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    85 g
  • Thermometer

Power and Consumption

  • Energy Class
    C
  • Max Ambient
    25°C at 60% RH
  • Energy Consumption
    9.07 kWh/24h
  • Annual Energy Consumption
    3311 kWh/year
  • Input Power
    600 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    61 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    630 x 580 x 1538 mm
  • External Dimension (WxDxH)
    750 x 760 x 2003 mm
  • Packed Dimension (WxDxH)
    775 x 775 x 2090 mm
  • 40ft Container Load
    45 pcs
  • GTIN / EAN
    5708181739515
  • Product Group - Delivery services
    Group 2

Downloads

Description

1 door display freezer, black

The Atom Maxi range of black glass door freezers is available in 1, 2 or 3 door options. Edge-to-edge "frameless" self-closing glass doors, a black interior/exterior together with excellent storage capacity makes it ideal for all types of frozen food displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice up under normal conditions, while vertical LED lighting on the black interior helps present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available, and the unit is often used alongside the Galaxy+ multideck.

Spare parts

  • 0
    Item no. 52036Top Hinge Right
  • 0
    Item no. 52039Bottom Hinge Right
  • 0
    Item no. 52041Light Switch Green
  • 1
    Item no. 52018Top Panel Black RAL9005
  • 2
    Item no. 52015Glass Door Black RAL9005
  • 3
    Item no. 52031Front Grill Black RAL9005
  • 4
    Item no. 47642Castor
  • 5
    Item no. 47795Digital Thermostat Carel
  • 6
    Item no. 47628Door Switch
  • 7
    Item no. 54967Evaporator Supporter Black
  • 8
    Item no. 49877Evaporator
  • 9
    Item no. 47629Evaporator Fan Motor
  • 11
    Item no. 54970Shelf 16mm Black
  • 11
    Item no. 54971Price Holder Black
  • 12
    Item no. 47647K-Clip
  • 13
    Item no. 52002Door Seal
  • 14
    Item no. 47648Condenser
  • 15
    Item no. 46055LED RIGHT
  • 16
    Item no. 46056LED LEFT
  • 17
    Item no. 46053Fan Blade
  • 19
    Item no. 49873Transformer
  • 20
    Item no. 47635Compressor
  • 21
    Item no. 47636Solenoid Valve Assembly
  • 22
    Item no. 47583Filter Drier
  • 23
    Item no. 47638LED Driver
