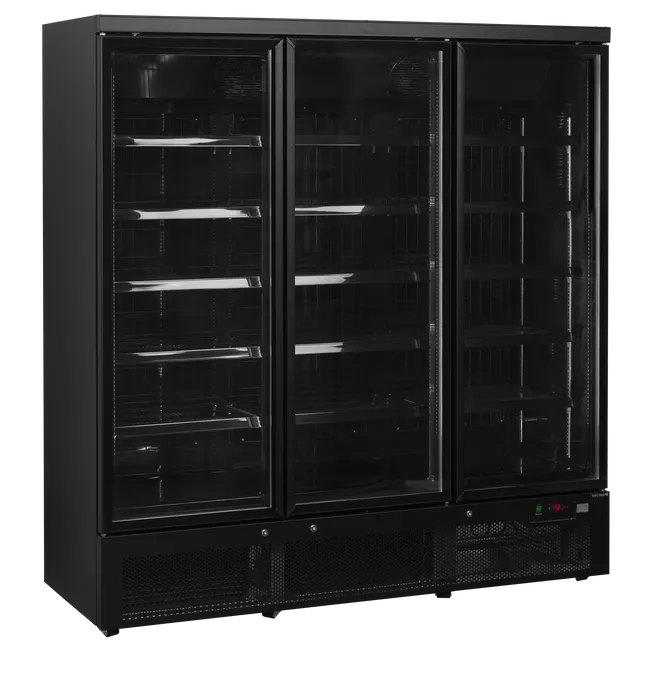

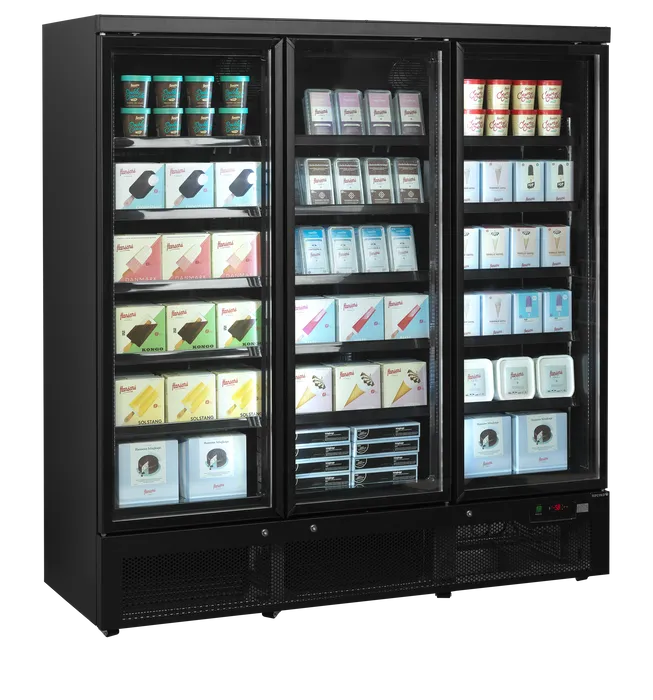

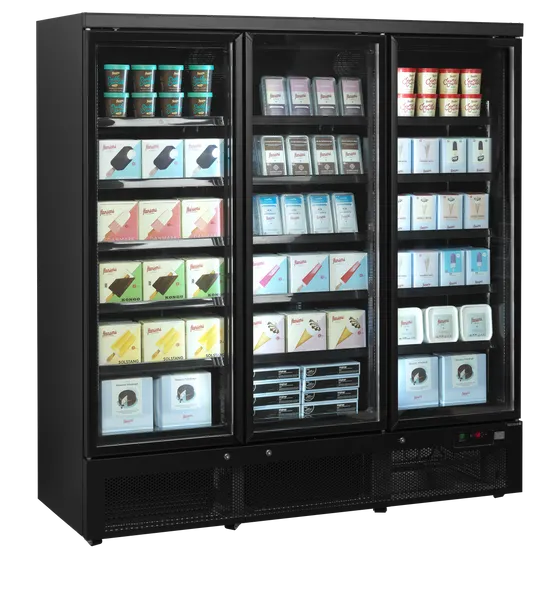

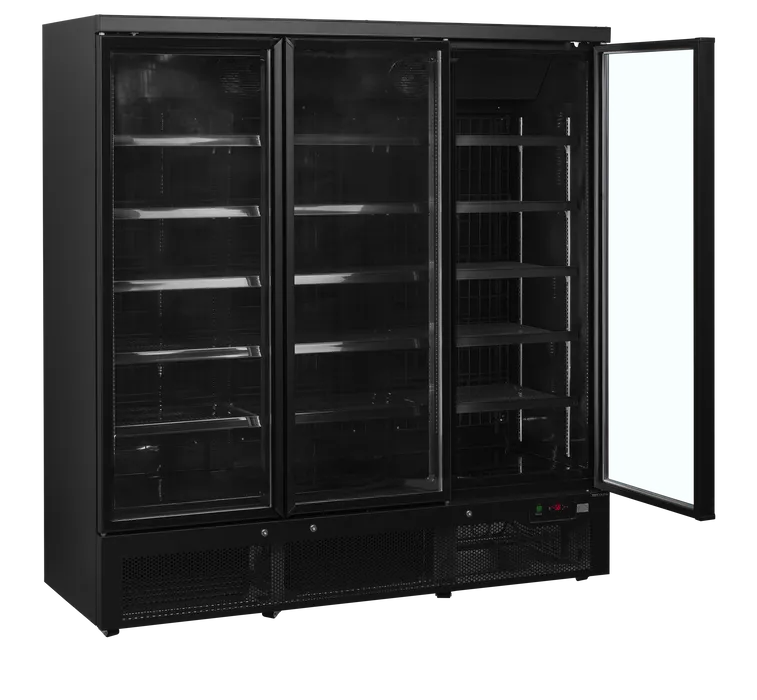

Display Freezer

Atom Maxi F3DBB

Item no.: 54345 (Substitution for )

  • Perfect display for frozen foods
  • Black interior and exterior
  • Low energy consumption
  • Self-closing heated glass doors
  • Triple glazed insulated glass
  • Adjustable shelves (split level)
  • Ventilated cooling
  • Internal vertical LED light
  • Stainless steel base with mirror effect
  • Digital controller and temperature display
  • Chiller Option Available
Energy arrow
Product Sheet
  • Next day delivery available on product
  • Unpack & Position
    £ 35.00
  • Remove & Dispose
    £ 69.00
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -18 to -22 °C
  • Climate Class
    3
  • Gross / Net Weight
    355 / 305 kg
  • Gross / Net Volume
    1563 / 1090 l
  • Total Display Area
    2.09 m²

Design and Material

  • Castors
    6 castors
  • Exterior Finish
    Black RAL9005
  • Interior Finish
    Black
  • Interior Light
    LED
  • Door Number & Type
    3 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    15 adjustable
  • Shelf Color
    Black
  • Shelf Dimensions
    551 x 470 mm ; 624 x 470 mm
  • Max load on Shelves
    140 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    2 x 95 g
  • Thermometer

Power and Consumption

  • Energy Class
    D
  • Max Ambient
    25°C at 60% RH
  • Energy Consumption
    23.84 kWh/24h
  • Annual Energy Consumption
    8702 kWh/year
  • Input Power
    1280 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    70 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1760 x 580 x 1538 mm
  • External Dimension (WxDxH)
    1880 x 760 x 2003 mm
  • Packed Dimension (WxDxH)
    1905 x 780 x 2090 mm
  • 40ft Container Load
    18 pcs
  • GTIN / EAN
    5708181739539
  • Product Group - Delivery services
    Group 2

Downloads

Description

Spare parts

  • 0
    Item no. 52036Top Hinge Right
  • 0
    Item no. 52037Top Hinge Left
  • 0
    Item no. 52038Bottom Hinge Left
  • 0
    Item no. 52039Bottom Hinge Right
  • 0
    Item no. 52041Light Switch Green
  • 0
    Item no. 54981Mullion w/ Heater Black
  • 1
    Item no. 52023Top Panel Black RAL9005
  • 2
    Item no. 52007Glass Door Left, Black RAL9005
  • 3
    Item no. 51634Front Grill Black RAL9005
  • 4
    Item no. 47642Castor
  • 5
    Item no. 52006Glass Door Right, Black RAL9005
  • 6
    Item no. 47795Digital Thermostat Carel
  • 7
    Item no. 47628Door Switch
  • 8
    Item no. 54967Evaporator Supporter Black
  • 9
    Item no. 47337Evaporator
  • 12
    Item no. 54974Price Holder Black
  • 12
    Item no. 54977Price Holder Middle Black
  • 12
    Item no. 54980Shelf 16mm Black
  • 12
    Item no. 54982Shelf Middle 16mm Black
  • 13
    Item no. 47647K-Clip
  • 14
    Item no. 47631Door Seal
  • 15
    Item no. 47658Condenser
  • 16
    Item no. 47632LED Light Left
  • 17
    Item no. 47633LED Light Right
  • 18
    Item no. 46053Fan Blade
  • 19
    Item no. 47629Evaporator Fan Motor
  • 20
    Item no. 47651Transformer
  • 21
    Item no. 47652Compressor
  • 22
    Item no. 47636Solenoid Valve Assembly
  • 23
    Item no. 47583Filter Drier
  • 24
    Item no. 47653LED Driver
