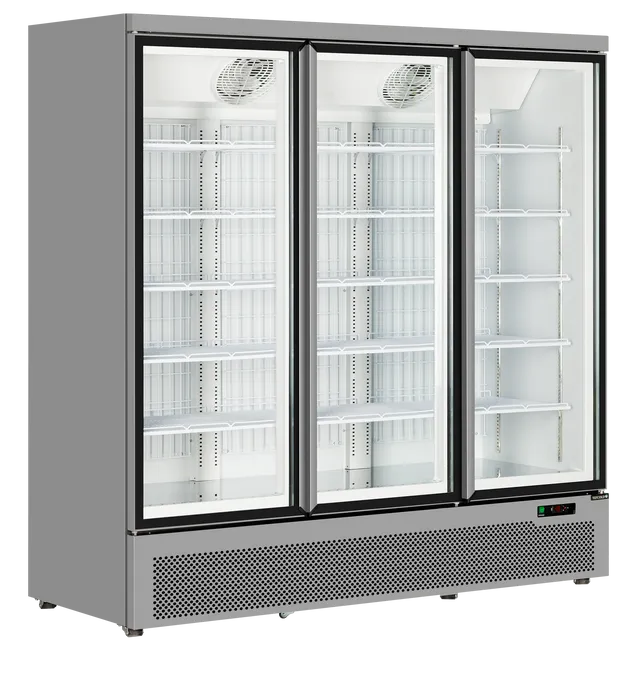

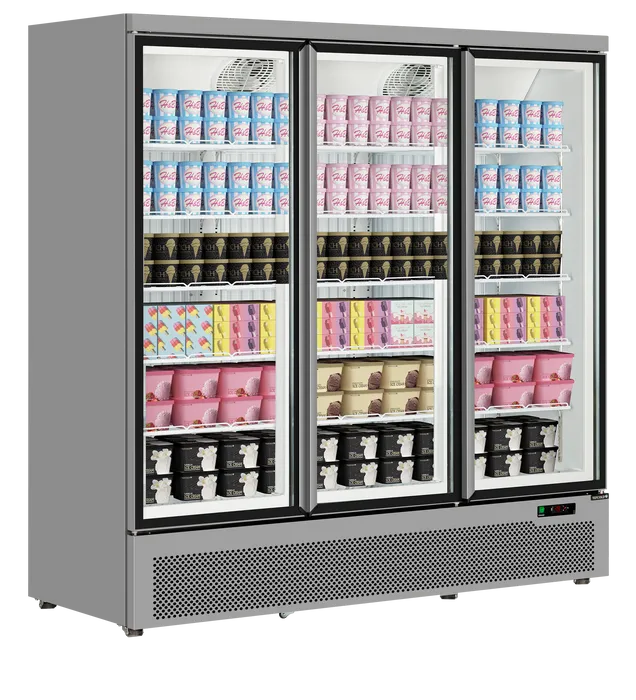

Display Freezer

Atom Maxi F3DS

Item no.: 49819

  • Perfect display for frozen foods
  • Low energy consumption
  • Hinged glass doors
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Self-closing doors
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling
  • Digital controller and temperature display
  • Castors
  • Chiller Option Available

Technical specifications

Measures and Content

  • Climate Class
    3
  • Gross / Net Volume
    1563 / 1090 l
  • Gross / Net Weight
    355 / 305 kg
  • Temperature Range
    -18 to -22 °C
  • Total Display Area
    2.09

Design and Material

  • Castors
    6 castors
  • Door Number & Type
    3 hinged glass doors
  • Door Reversible
    No
  • Exterior Finish
    Silver RAL9006
  • Interior Finish
    White
  • Interior Light
    LED
  • Max load on Shelves
    140 kg/m²
  • Shelf Color
    White
  • Shelf Dimensions
    551 x 470 mm ; 624 x 470 mm
  • Shelves Number & Type
    15 adjustable

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    2 x 95 g
  • Thermometer

Power and Consumption

  • Annual Energy Consumption
    8702 kWh/year
  • Energy Class
    D
  • Energy Consumption
    23.84 kWh/24h
  • Input Power
    1280 W
  • Noise Level
    70 dB(A)
  • Voltage / Frequency
    220-240/50 V/Hz

Dimensions

  • 40ft Container Load
    18 pcs
  • External Dimension (WxDxH)
    1880 x 760 x 2003 mm
  • GTIN / EAN
    5708181733445
  • Internal Dimension (WxDxH)
    1760 x 580 x 1538 mm
  • Packed Dimension (WxDxH)
    1905 x 780 x 2090 mm
  • Product Group - Delivery services
    Group 4

Downloads

Description

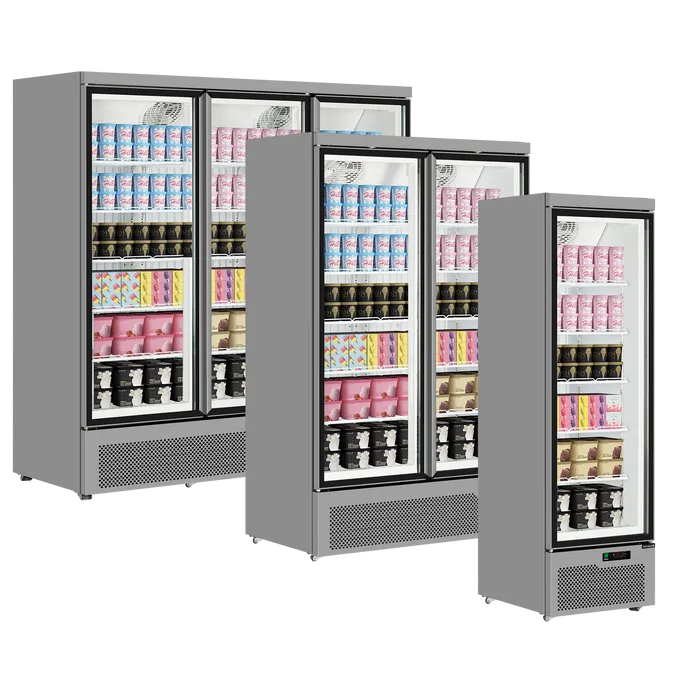

The Atom Maxi range of glass door freezers is available in 2 or 3 door options. Edge to edge "frameless" self closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.

Spare parts

  • 0
    Item no. 51993Mullion + Heater + K strip
  • 0
    Item no. 52005Mullion w/ Heater White
  • 0
    Item no. 52036Top Hinge Right
  • 0
    Item no. 52037Top Hinge Left
  • 0
    Item no. 52038Bottom Hinge Left
  • 0
    Item no. 52039Bottom Hinge Right
  • 0
    Item no. 52041Light Switch Green
  • 1
    Item no. 52025Top Panel Grey RAL9006
  • 2
    Item no. 52012Glass Door Left, Grey RAL9006
  • 3
    Item no. 52033Front Grill Grey RAL9006
  • 4
    Item no. 47642Castor
  • 5
    Item no. 52011Glass Door Right, Grey RAL9006
  • 6
    Item no. 47795Digital Thermostat Carel
  • 7
    Item no. 47628Door Switch
  • 8
    Item no. 47644Evaporator Supporter
  • 9
    Item no. 47337Evaporator
  • 10
    Item no. 47629Evaporator Fan Motor
  • 12
    Item no. 47646Shelf 16mm
  • 12
    Item no. 47657Shelf Middle 16mm
  • 12
    Item no. 54015Price Holder
  • 12
    Item no. 54016Price Holder Middle
  • 13
    Item no. 47647K-Clip
  • 14
    Item no. 47631Door Seal
  • 15
    Item no. 47658Condenser
  • 16
    Item no. 47632LED Light Left
  • 17
    Item no. 47633LED Light Right
  • 18
    Item no. 46053Fan Blade
  • 20
    Item no. 47651Transformer
  • 21
    Item no. 47652Compressor
  • 22
    Item no. 47636Solenoid Valve Assembly
  • 23
    Item no. 47583Filter Drier
  • 24
    Item no. 47653LED Driver
