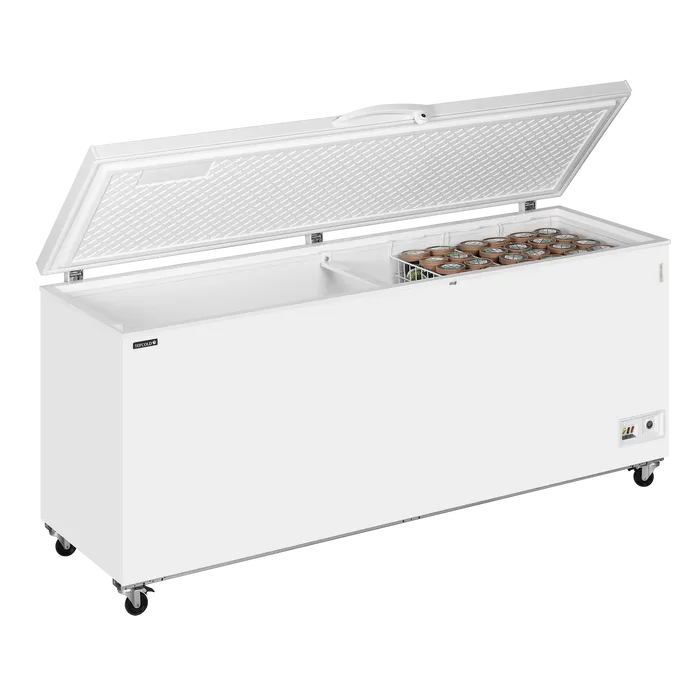

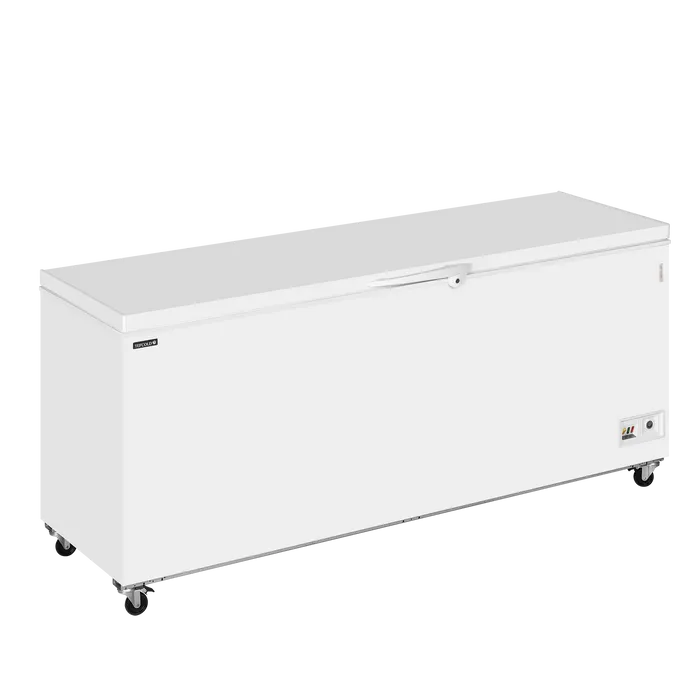

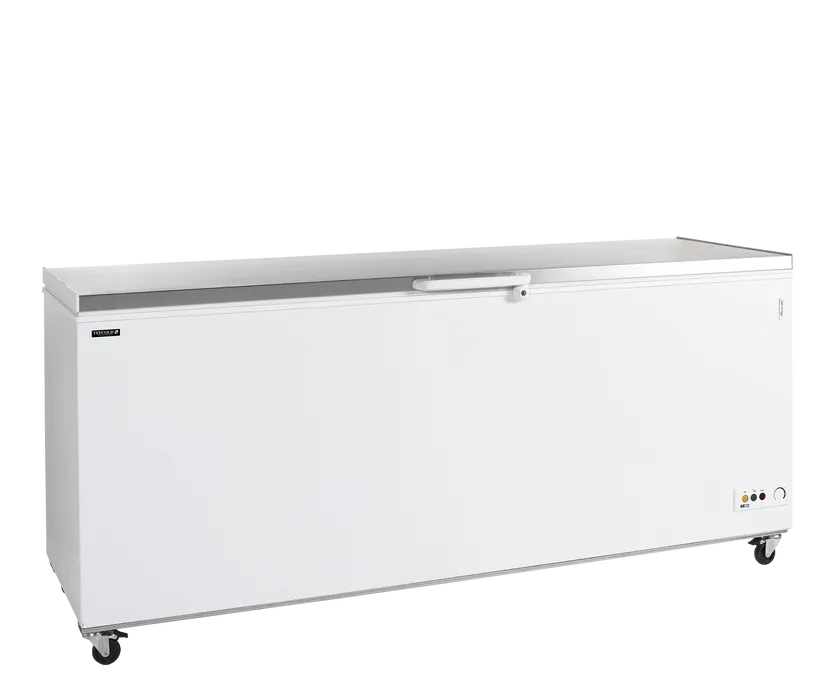

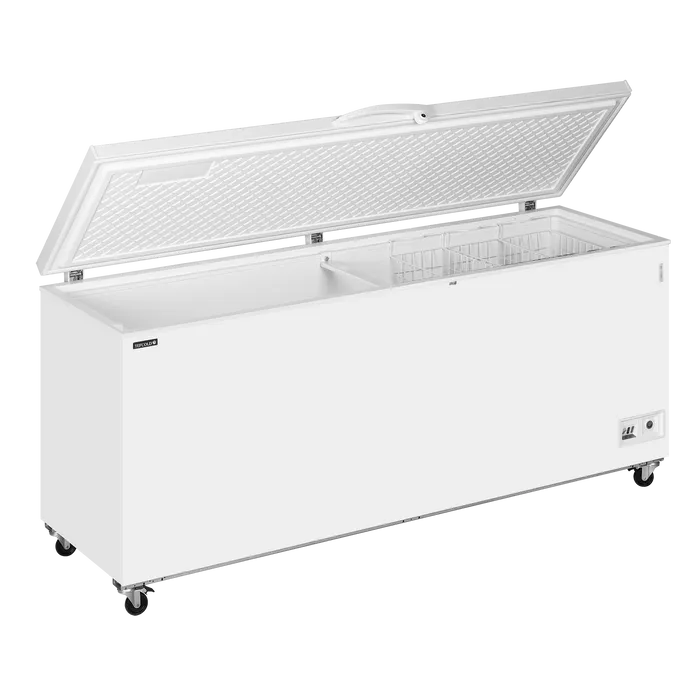

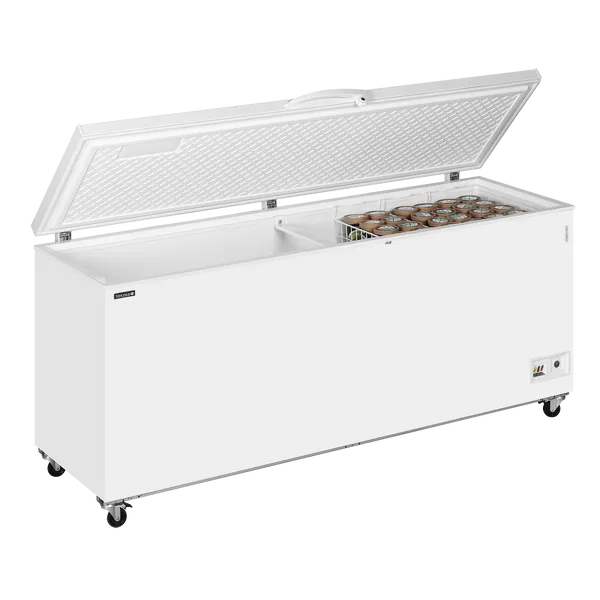

Ice Cream Freezer

CF700 SL

Item no.: 16162

  • Handle with lock
  • High temperature alarm
  • Thermometer
  • Powder coated white steel inner liner
  • Defrost drain
  • Baskets
  • Castors with brake
Energy arrow
Product Sheet

Technical specifications

Measures and Content

  • Climate Class
    4
  • Gross / Net Volume
    675 / 600 l
  • Gross / Net Weight
    119 / 114 kg
  • Temperature Range
    -24 to -14 °C

Design and Material

  • Basket Number & Type
    3 Wire baskets, white
  • Castors
    4 double castors
  • Exterior Finish
    White
  • Interior Finish
    White painted steel
  • Interior Light
    No
  • Lid Number & Type
    1 hinged solid lid
  • Lock

Cooling and Functions

  • Type of Controller
    Mechanical
  • Type of Cooling
    Static
  • Type of Defrost
    Manual
  • Refrigerant
    R600a
  • Refrigerant Charge
    120 g
  • Thermometer

Power and Consumption

  • Annual Energy Consumption
    1199 kWh/year
  • Energy Class
    D
  • Energy Consumption
    3.28 kWh/24h
  • Input Power
    277 W
  • Noise Level
    42 dB(A)
  • Voltage / Frequency
    220-240/50 V/Hz

Dimensions

  • 40ft Container Load
    32 pcs
  • External Dimension (WxDxH)
    2060 x 716 x 903 mm
  • GTIN / EAN
    5708181003852
  • Internal Dimension (WxDxH)
    1935 x 510 x 685 mm
  • Packed Dimension (WxDxH)
    2150 x 750 x 990 mm
  • Product Group - Delivery services
    Group 3

Downloads

Spare parts

  • 1
    Item no. 12668Handle
  • 1
    Item no. 13081Lid
  • 1
    Item no. 15350Cover For Lamp
  • 1
    Item no. 15386Lamp 15W
  • 1
    Item no. 15475Socket For Lamp
  • 7
    Item no. 14642Double Wheel(50*17*8)
  • 7
    Item no. 14666Wheel With Brake (70*23*10)
  • 7
    Item no. 14678Wheel Without Brake
  • 8
    Item no. 11155Louvered Plate Side F/Screws
  • 9
    Item no. 11336Ventilation Grill Back 2017
  • 10
    Item no. 11465Drain Plug Outer White
  • 11
    Item no. 11553Inner Drain Plug
  • 13
    Item no. 12935Spring Hinge
  • 13
    Item no. 12943Spring Hinge Middle/Strong
  • 14
    Item no. 12787Cover For Hinge (Bottom)
  • 15
    Item no. 12788Cover For Hinge (Top)
  • 17
    Item no. 13646Green Control Lamp
  • 17
    Item no. 13694Red Control Lamp
  • 17
    Item no. 13776Yellow Switch
  • 17
    Item no. 13818Control Panel Complete
  • 17
    Item no. 13834Control Panel Plastic For Ther
  • 17
    Item no. 13904Rear Plastic Box For Thermosta
  • 17
    Item no. 13965Thermostat Button
  • 17
    Item no. 14012Thermostat K54-Bs2126000
  • 18
    Item no. 11769Compressor NEU1140U R290
  • 18
    Item no. 11807Compressor SC12CL
  • 18
    Item no. 13494Fan Blade Ø200 5 Wings
  • 18
    Item no. 13519Fan Motor
  • 18
    Item no. 13534Fan Motor'S Treadle
  • 18
    Item no. 14093Condenser
  • 18
    Item no. 15721Filter Drier 20 G
  • 21
    Item no. 14729Wire Basket 218 mm Wide
  • 22
    Item no. 15770Ice Scraper
  • 23
    Item no. 13797Thermometer, White
