Scoop Ice Cream Display
DOLCE VITA 4
Item no.: 20324
- Static cooling
- Suitable for (7.5 litre) cylindrical Carapine Pans (not included)
- Shock proof plexiglass sneeze screen
- Castors

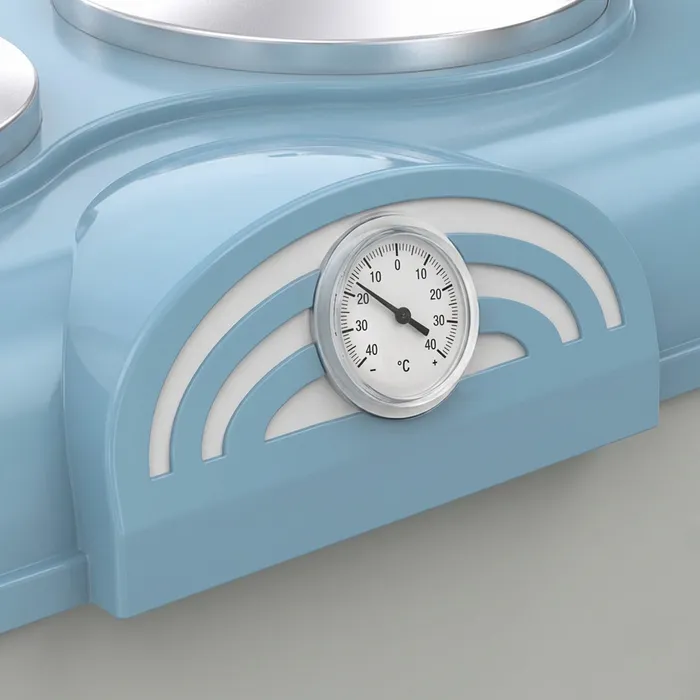

- Thermometer
- Optional scoop wash
- Next day delivery available on product
- Unpack & Position£ 35.00
- Remove & Dispose£ 69.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range-20 to -10 °C
- Climate Class4
- Gross / Net Weight99 / 78 kg
- Serving Capacity4 Carapine (7,5 L)
- Storage capacity (under)No Under Storage
Design and Material
- Exterior FinishWhite/Light Bue
- Interior FinishStainless Steel
Cooling and Functions
- Type of DefrostManual
- RefrigerantR290
- Thermometer
Power and Consumption
- Max Ambient30°C at 55% RH
- Energy Consumption2.21 kWh/24h
- Annual Energy Consumption807 kWh/year
- Voltage / Frequency220-240/50 V/Hz
Dimensions
- External Dimension (WxDxH)654 x 665 x 1030 mm
- Packed Dimension (WxDxH)740 x 715 x 1117 mm
- 40ft Container Load 96 pcs
- GTIN / EAN5708181617530
- Product Group - Delivery servicesGroup 2
Downloads
Spare parts
- 1Item no. 33382Ice Cream Cover, Dolce Vita 8/10
- 2Item no. 33396Cover Dolce Vita 4 Grey
- 3Item no. 33397Gasket Dolce Vita 4 White
- 4Item no. 33385Circular Thermometer D.57 -40/+40°C
- 5
Item no. 13893Probe Cover - 6Item no. 33386Basketcylindrical Tub D.200 Dolce Vita 6 White
- 7Item no. 33387Partition Basket Dolce Vita White
- 8Item no. 33398Ass.Acc.Nly80Laa 220-240V 50Hz Csir R290
- 9Item no. 33399Comp.Nly80Laa 220-240V 50Hz Csir R290
- 10Item no. 32960Filter XH9 Entry 5 Out 2.75 Gr20
- 11
Item no. 14208Wire Condenser - 12
Item no. 13517Fan D.230x28° Aluminum - 13
Item no. 13596Motor Fan 10W 220-240V - 14Item no. 33388Thermostat Dig.Xr30Ch Dixell Dolcevita R290 ->
- 15Item no. 33389Digital Thermost. Probe L=3000
- 16
Item no. 15674Power Supply LED 24V - 17Item no. 32953Power Supply Led 24V Ref.Mw
- 18Item no. 33391Control Board Prot.Dolcevita R290
- 20Item no. 33400Wheel 50/2 Nf
- 21Item no. 33392Rear Panel.Zoccolo Dolce Vita 2/4 R290 Azzurro P290C
- 22Item no. 33401Right Panel Dolce Vita 4/6 Azzurro P290C
- 23Item no. 33402Left Panel Dolce Vita 4/6 Azzurro P290C
- 24Item no. 33395Front Panel.Zoccolo Piano Dolce Vita 2/4 Azzurro P290C
