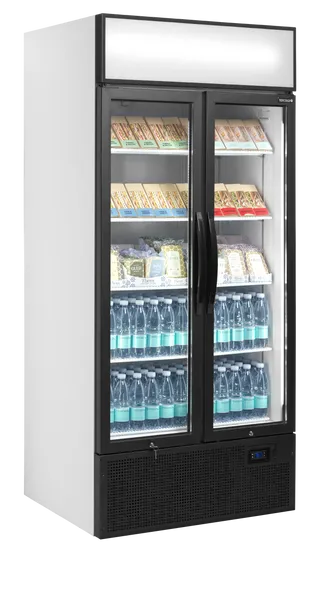

Glass Door Merchandiser

FSC891H

Item no.: 48873 (Substitution for 22581)

  • Fully automatic
  • Fan assisted cooling
  • Adjustable full width shelves
  • Vertical LED interior light with switch
  • Thermometer
  • Self-closing hinged glass door
  • LED Light canopy with switch
  • Adjustable feet with rollers to rear
  • Replaceable door gasket
Energy arrow
Product Sheet

Technical specifications

Measures and Content

  • Bottles 330 ml
    528 pcs
  • Bottles 500 ml PET
    468 pcs
  • Cans 330 ml
    948 pcs
  • Cans 500 ml
    480 pcs
  • Climate Class
    4
  • Gross / Net Volume
    707 / 535 l
  • Gross / Net Weight
    166 / 153 kg
  • Temperature Range
    +2 to +10 °C

Design and Material

  • Canopy Type
    D-Shape
  • Castors
    4 rollers
  • Door Number & Type
    2 hinged self-closing glass doors
  • Door Reversible
    No
  • Exterior Finish
    White RAL9016
  • Interior Finish
    White painted steel
  • Interior Light
    LED
  • Feet / Legs
    4 adjustable feet
  • Lock
  • Max load on Shelves
    196 kg/m²
  • Shelf Color
    White
  • Shelf Dimensions
    794 x 540 mm
  • Shelves Number & Type
    5 wire shelves white

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    115 g
  • Thermometer

Power and Consumption

  • Annual Energy Consumption
    960 kWh/year
  • Energy Class
    C
  • Energy Consumption
    2.63 kWh/24h
  • Input Power
    410 W
  • Noise Level
    48 dB(A)
  • Voltage / Frequency
    220-240/50 V/Hz

Dimensions

  • 40ft Container Load
    28 pcs
  • External Dimension (WxDxH)
    890 x 740 x 1990 mm
  • GTIN / EAN
    5708181731250
  • Internal Dimension (WxDxH)
    810 x 561 x 1556 mm
  • Packed Dimension (WxDxH)
    950 x 840 x 2160 mm
  • Product Group - Delivery services
    Group 2

Downloads

Description

The FSC-H range combines a quality unit at a very competitive price. Excellent build quality with a powerful fan assisted refrigeration system, sturdy hinged door, and LED light canopy that can have branding added to create extra impact. Excellent vertical LED lighting (2 light strips on each door) really helps product stand out to customers.



Spare parts

  • 1
    Item no. 14237Evaporator
  • 1
    Item no. 54918Door Complete
  • 2
    Item no. 14374Evaporator Cover
  • 2
    Item no. 49885Evaporator Cover Black
  • 3
    Item no. 13446Evaporator Fan Motor 1300 Rpm
  • 3
    Item no. 54935Right Glass Door Complete
  • 4
    Item no. 13439Evaporator Fan Frame
  • 4
    Item no. 54919Door LED Light
  • 5
    Item no. 13556Finger Guard
  • 6
    Item no. 13494Fan Blade Ø200 5 Wings
  • 7
    Item no. 13443Evaporator Fan Group
  • 7
    Item no. 13483Fan Blade 200 mm
  • 8
    Item no. 10220Canopy Base
  • 8
    Item no. 12864Hinge Bush
  • 9
    Item no. 15515Holder For LED Strip
  • 10
    Item no. 54928Left Glass Door Complete
  • 11
    Item no. 54433Bushing For Hinge
  • 12
    Item no. 15632LED Power Supply 12VDC 60W
  • 12
    Item no. 54917Compressor EHU6214U
  • 13
    Item no. 15652LED Strip 810 mm 7000K 7LM
  • 13
    Item no. 38539Condenser Maintenance Free
  • 14
    Item no. 10243Canopy End Cover Left/Right
  • 14
    Item no. 41007Fan Axial
  • 15
    Item no. 13357Condenser Fan Bracket 72 mm
  • 17
    Item no. 10280Canopy Opal Plate
  • 17
    Item no. 54920Drip Tray
  • 18
    Item no. 10416Cover For Internal Tubes
  • 18
    Item no. 13321Condenser Clip
  • 19
    Item no. 34734Dryer
  • 20
    Item no. 11218Rear Grill
  • 21
    Item no. 15181Wire Shelf Without Print Profile
  • 21
    Item no. 35098Wire Shelf With Print Profile
  • 22
    Item no. 13756Plastic For Door Switch
  • 22
    Item no. 13956Thermostat Bracket
  • 23
    Item no. 14614Pin For Big Roller
  • 23
    Item no. 16619Door Switch Black Warsteiner
  • 24
    Item no. 13802Carel Thermostat Easy
  • 24
    Item no. 13966Thermostat Carel Eco
  • 25
    Item no. 35353Cover For Thermostat
  • 26
    Item no. 10863Bottom Panel Hexagonal
  • 26
    Item no. 11243Cover For Screw
  • 26
    Item no. 54936Screw Plug
  • 27
    Item no. 14618Roller
  • 28
    Item no. 14570Adjustable Foot
  • 28
    Item no. 54910Bottom Grill
  • 29
    Item no. 14899Clip For Shelf
  • 29
    Item no. 32062Clip For Shelf Black
  • 30
    Item no. 11359Back Side Spacer
  • 30
    Item no. 15001Rails For Shelves
  • 31
    Item no. 13764Switch
  • 31
    Item no. 14565Adjustable Foot
  • 32
    Item no. 10732Magnet For Door Switch
  • 32
    Item no. 12728Base For Hinge
  • 33
    Item no. 10047Door Switch Bracket
  • 33
    Item no. 54916Canopy Light Plate
  • 34
    Item no. 12563Door Gasket
  • 35
    Item no. 12819Door Spring Left
  • 36
    Item no. 10715Lock With Keys
  • 36
    Item no. 12820Door Spring Right
  • 36
    Item no. 34415Glass Door hinged w/lock Right 2021
  • 37
    Item no. 54914Canopy Base
  • 38
    Item no. 154871200 mm LED Strip 6500K 7LM
  • 38
    Item no. 15671Power Supply 4 Sides Glass LED
  • 39
    Item no. 12875Hinge Spring Cover
  • 39
    Item no. 54911Bracket for Door Switch
  • 40
    Item no. 12850Bottom Hinge Left
  • 41
    Item no. 12851Bottom Hinge Pin Left
  • 41
    Item no. 54924LED 7000K 4,37W
  • 42
    Item no. 34427Glass Door hinged w/lock Left 2021
  • 42
    Item no. 38644Evaporator Fan Complete
  • 43
    Item no. 12700Handle Curved Black
  • 44
    Item no. 12764Bottom Hinge Pin For Wires Right
  • 44
    Item no. 54921Evaporator
  • 45
    Item no. 12852Bottom Hinge Right
  • 46
    Item no. 13519Fan Motor
  • 47
    Item no. 13441Evaporator Fan Frame
  • 50
    Item no. 11478Drip Tray
  • 51
    Item no. 14087Condenser
  • 52
    Item no. 13529Fan Motor Div. Use/Condenser
  • 53
    Item no. 13488Fan Blade 25 cm (Condenser)
  • 55
    Item no. 11781Compressor NLE8.8CN / PA80HHA R290
  • 56
    Item no. 15700Filter Drier
  • 61
    Item no. 13896Probe NTC Dixell/Carel 10 Kohm
