Baskets
Lock

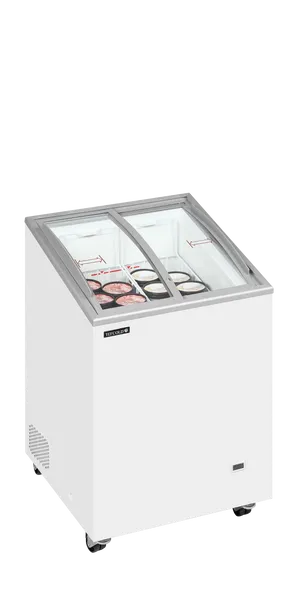

Sliding Curved Glass Lid Chest Freezer
IC101SCEB
Item no.: 48835 (Substitution for 20108 )
- Sloping display for excellent presentation
- Curved sliding lids with lock
- Ideal for branding
- Digital thermometer
- Castors with brake
- Climate class 5 for high performance in warm surroundings
- Next day delivery available on product
- Unpack & Position£ 35.00
- Remove & Dispose£ 64.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range-24 to -14 °C
- Climate Class5
- Gross / Net Weight40 / 37 kg
- Gross / Net Volume100 / 85 l
Design and Material
- Castors4 double castors
- Exterior FinishWhite
- Interior FinishWhite painted steel
- Interior LightNo
- Lock
- Lid Number & Type2 curved sliding temp. glass lids
- Basket Number & Type1 Wire basket, white
- Max No. of Baskets2 pcs
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge60 g
- Thermometer
Power and Consumption
- Energy ClassD
- Max Ambient40°C 40% RH
- Energy Consumption1.29 kWh/24h
- Annual Energy Consumption470 kWh/year
- Power13 Amp
- Input Power80 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- Internal Dimension (WxDxH)450 x 450 x 490 mm
- External Dimension (WxDxH)570 x 570 x 885 mm
- Packed Dimension (WxDxH)680 x 700 x 1010 mm
- 40ft Container Load 108 pcs
- GTIN / EAN5708181730925
- Product Group - Delivery servicesGroup 1
Downloads
Description
Spare parts
- 2Item no. 10662Upper Glass With Frame
- 3
Item no. 10718Lock With Keys - 4
Item no. 11553Inner Drain Plug - 5Item no. 10496Bottom Glass With Frame
- 6Item no. 15772Ice Scraper
- 7
Item no. 11212Plastic Strip For Alu Frame - 8
Item no. 13426Evaporator Fan Blade 190/28° - 9Item no. 34974Fan Motor Foot Sheet H=55mm
- 10
Item no. 14000Thermostat K50B-S3564 Ranco - 11
Item no. 13793Thermometer Digital White - 12Item no. 54367Condenser
- 13Item no. 34163LED Lighting
- 14Item no. 14724Wire Basket 190 mm
- 15
Item no. 11465Drain Plug Outer White - 16
Item no. 11219Rear Grill - 17Item no. 38818Dryer
- 18Item no. 34165Plastic Cover
- 19Item no. 54349Fan Motor
- 21Item no. 45491Compressor LK118CY1 R600a 220-240V/50Hz RSCR
- 25Item no. 32924End Piece For Vert. LED White 56 mm
- 26
Item no. 14674Wheel With Brake U-Mount - 27
Item no. 14663Wheel W/O Brake U-Mount - 28
Item no. 14653U-Shaped Lock For Wheels - 29
Item no. 10734Rubber Cap For U-Lock
