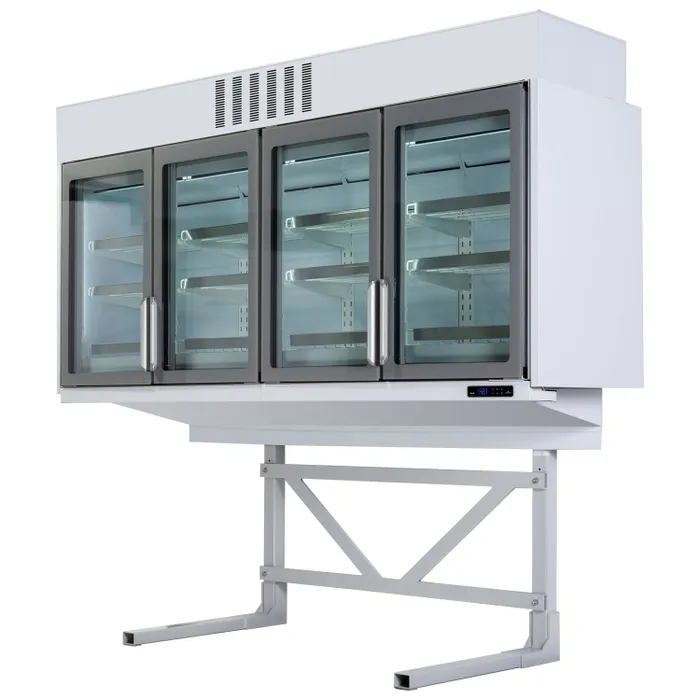

Panoramic Top Case Freezer

SUPER ARV215DE

Item no.: 20292 (Substitution for )

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Vertical LED interior light with switch

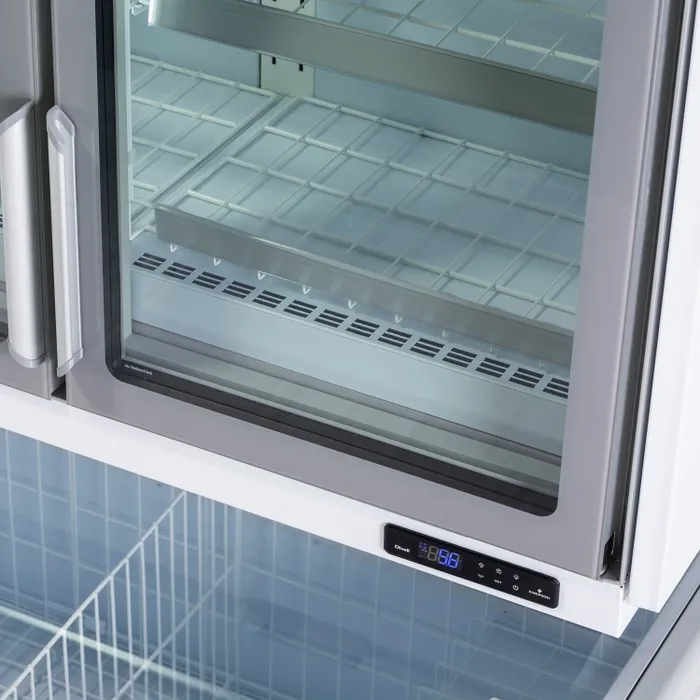

  • Digital controller and temperature display

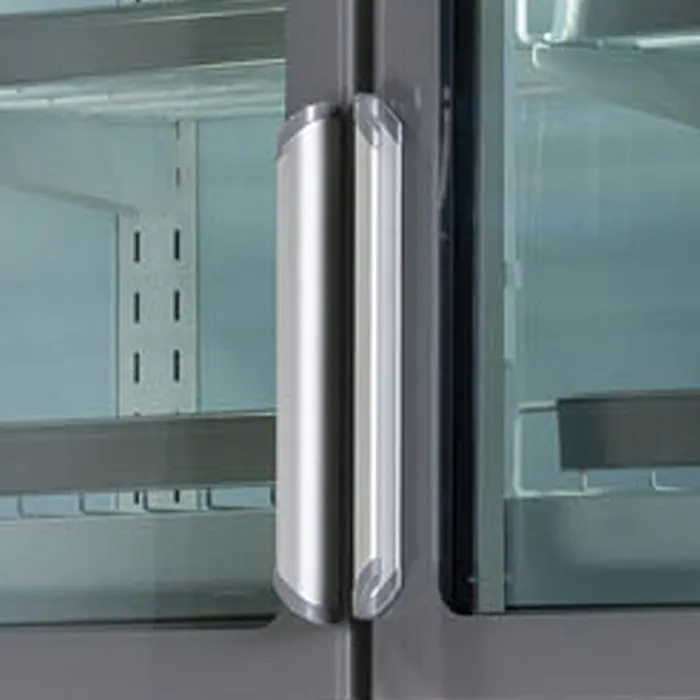

  • Heated Self-closing glass doors
  • Requires display chiller/freezer to sit underneath
  • Available in white or anthracite (RA7016) finish
  • Ticket strip and acrylic front riser as standard
Energy arrow
Product Sheet
  • Next day delivery available on product
  • Unpack & Position
    £ 97.00
  • Remove & Dispose
    £ 231.00
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Total Display Area
    1.7 m²
  • Temperature Range
    -24 to -18 °C
  • Climate Class
    3
  • Gross / Net Weight
    542 / 462 kg
  • Gross / Net Volume
    760 / 642 l

Design and Material

  • Door Number & Type
    4 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    8
  • Shelf Color
    White
  • Feet / Legs
    4 adjustable feet
  • Exterior Finish
    White
  • Interior Finish
    White
  • Interior Light
    LED

Cooling and Functions

  • Type of Defrost
    Electric
  • Refrigerant
    R290
  • Refrigerant Charge
    2 x 60 g
  • Thermometer

Power and Consumption

  • Energy Class
    C
  • Max Ambient
    25°C at 60% RH
  • Energy Consumption
    15.5 kWh/24h
  • Annual Energy Consumption
    5657 kWh/year
  • Input Power
    1300 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    48 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    2050 x 422 x 740 mm
  • External Dimension (WxDxH)
    2500 x 940 x 880 mm
  • Packed Dimension (WxDxH)
    2505 x 1060 x 1670 mm
  • 40ft Container Load
    13 pcs
  • GTIN / EAN
    5708181617219
  • Product Group - Delivery services
    Group 5

Downloads

Description

The Super ARV215DE panoramic top case should be used in combination with the VIEW 250CF VS or Super 250DE dislay freezer to offer a versatile eye level display. Sitting abovea display display freezer, it is ideal for a variety of configurations either as a wall or island display.

Spare parts

  • 1
    Item no. 33080Superstructure
  • 2
    Item no. 33081Cabinet 2.5 M
  • 3
    Item no. 33082Bottom Steel Cover
  • 4
    Item no. 33083M12 Foot
  • 5
    Item no. 33084Water Tank
  • 6
    Item no. 33085Right Hand Door
  • 7
    Item no. 33086Left Hand Door
  • 8
    Item no. 33087Shelf 370Mm
  • 9
    Item no. 33088Bottom Shelf 370Mm
  • 10
    Item no. 33089Shelf Ticket Strip 39Mm
  • 11
    Item no. 33090Left Upright Shelf Support
  • 12
    Item no. 33091Double Upright Shelf Support
  • 13
    Item no. 33092Duct Bottom Cover
  • 14
    Item no. 33093Duct Rear Cover
  • 15
    Item no. 33094Duct Top Cover
  • 16
    Item no. 33095Tangencial Fan Motor Support
  • 17
    Item no. 33096Tangencial Fan Motor
  • 18
    Item no. 33097LED Light
  • 19
    Item no. 33098Wall Mounting Bracket
  • 20
    Item no. 33099LED Transformer Support
  • 21
    Item no. 33100LED Transformer Cover
  • 22
    Item no. 33101LED Connector
  • 23
    Item no. 33102LED Transformer
  • 24
    Item no. 33103Ventilation Cover
  • 25
    Item no. 33104Compressor
  • 27
    Item no. 33105Microchannel Condenser
  • 28
    Item no. 33106Ventilation Rear Cover
  • 30
    Item no. 33107Electrical Box Connection
  • 32
    Item no. 33109Controller XRi77Cx
  • 33
    Item no. 33110Frontal Top Cover
  • 34
    Item no. 33111Right Side Top Cover
  • 35
    Item no. 33112Left Side Top Cover
  • 36
    Item no. 33113Rear Top Cover
  • 37
    Item no. 33114Top Cover
  • 40
    Item no. 33115Evaporator
  • 43
    Item no. 33116Relay 30A - 230V
