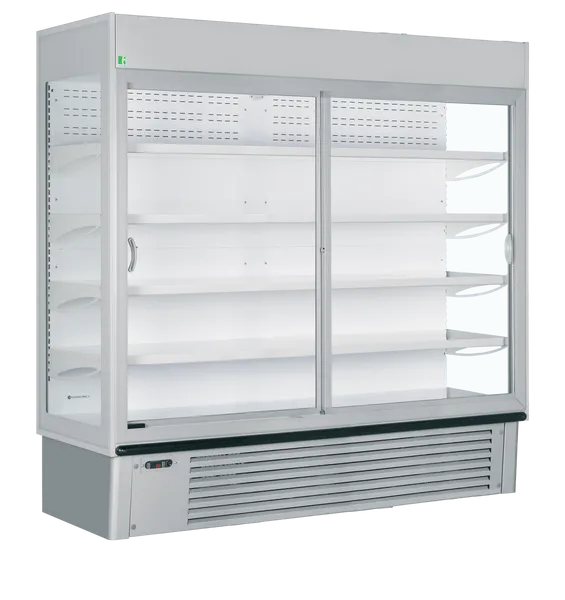

Wall Site Multideck With Doors

SUPER SUNNY19

Item no.: 19310

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Digital controller and temperature display
  • Ticket strip included
  • Self closing doors with stay open feature for ease of loading
  • Low maintenance spiral condensor for increased efficiency
Energy arrow
Product Sheet

Technical specifications

Measures and Content

  • Climate Class
    4
  • Gross / Net Volume
    1340 / 1180 l
  • Gross / Net Weight
    346 / 327 kg
  • Temperature Range
    0 to +8 °C
  • Total Display Area
    2.71 m²

Design and Material

  • Door Number & Type
    2 self-closing sliding glass doors
  • Door Reversible
    No
  • Exterior Finish
    Grey
  • Interior Finish
    White
  • Interior Light
    LED
  • Feet / Legs
    4 adjustable feet
  • Lock
  • Max load on Shelves
    100 kg/m²
  • Shelf Color
    White
  • Shelves Number & Type
    4 white coated tilting

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    220 g
  • Thermometer

Power and Consumption

  • Annual Energy Consumption
    4793 kWh/year
  • Energy Class
    C
  • Energy Consumption
    13.13 kWh/24h
  • Input Power
    1200 W
  • Noise Level
    55 dB(A)
  • Voltage / Frequency
    220-240/50 V/Hz

Dimensions

  • 40ft Container Load
    18 pcs
  • External Dimension (WxDxH)
    1885 x 737 x 1987 mm
  • GTIN / EAN
    5708181607234
  • Internal Dimension (WxDxH)
    1845 x 480 x 1380 mm
  • Packed Dimension (WxDxH)
    1990 x 760 x 2150 mm
  • Product Group - Delivery services
    Group 4

Downloads

Description

The Super Sunny is a sliding door multideck with a generous 5 tier display. Curved corners give the unit a sleek look, sliding doors help save energy while maintaining the visual appeal of a large display. Fully automatic and fan assisted, it ensures even cooling throughout the whole cabinet for drinks and sandwiches as well as milk and other dairy products.

Spare parts

  • 1
    Item no. 13445Evaporator Fan Motor
  • 2
    Item no. 13420Evaporator Fan 200x23°
  • 3
    Item no. 14322Evaporator
  • 4
    Item no. 14499Water Tray Evaporator
  • 6
    Item no. 10444Evaporator Cover
  • 7
    Item no. 13537Fan Protection
  • 9
    Item no. 12087Door Guide
  • 10
    Item no. 12386Right Front Door
  • 11
    Item no. 12371Left Front Door
  • 12
    Item no. 10703Lock with keys
  • 13
    Item no. 12158Door Roller
  • 20
    Item no. 10629Side Glass
  • 21
    Item no. 10497Bracket Holder Back Profile
  • 22
    Item no. 10498Bracket Lower Glass
  • 23
    Item no. 14589Foot M12
  • 24
    Item no. 11843Compressor Start Set
  • 25
    Item no. 11783Compressor NLY90RAB R290 (Excl. start-set 11843)
  • 26
    Item no. 15735Filter Ent 6.5 Out 2.75 Gr.20
  • 27
    Item no. 14207Wire Condenser
  • 28
    Item no. 13374Condenser Fan Motor
  • 31
    Item no. 14535Right Water Tray Pipe Coil
  • 32
    Item no. 14531Left Water Tray Pipe Coil
  • 33
    Item no. 11239Right Panel
  • 34
    Item no. 11146Left Panel
  • 35
    Item no. 10849Bottom Panel
  • 36
    Item no. 13982Thermostat Cover
  • 37
    Item no. 11118Grill
  • 38
    Item no. 10161Bumper Ending
  • 39
    Item no. 10166Bumper Plug
  • 40
    Item no. 10136Bumper
  • 41
    Item no. 15079Shelf Bracket Rail
  • 42
    Item no. 15005Right Bracket Shelf
  • 43
    Item no. 14945Left Bracket Shelf
  • 45
    Item no. 14981Price Holder Profile
  • 46
    Item no. 14883Bottom Shelf
  • 47
    Item no. 15560LED Lamp 12W L1200 24V
  • 48
    Item no. 15673Power Supply LED 24V
  • 49
    Item no. 13699Relay
  • 50
    Item no. 13765Switch
  • 51
    Item no. 13858Digital Thermostat EV3X21N7
  • 52
    Item no. 13898Probe NTC L=2000 Pvc
  • 53
    Item no. 13900Probe NTC L=3000 Blue
  • 55
    Item no. 11530Evaporator Tray Foam L/R
  • 56
    Item no. 11529Evaporator Tray Foam Center
  • 57
    Item no. 15561LED Lamp 16W L1600 24V
  • 99
    Item no. 13350Condenser Fan 254x27°
