    Electronic thermostat

  • product-54860-detailimage2

    Internal fan

  • product-54860-imagerange
  • product-54860-primaryimagenoshadow
  • product-54860-withcontentimagenoshadow
  • product-54860-openimagenoshadow
  • product-54860-packedimage
  • product-54860-detailimage1
  • product-54860-detailimage2
  • product-54860-imagerange

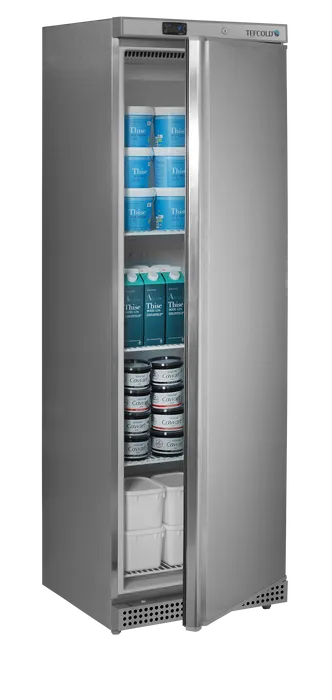

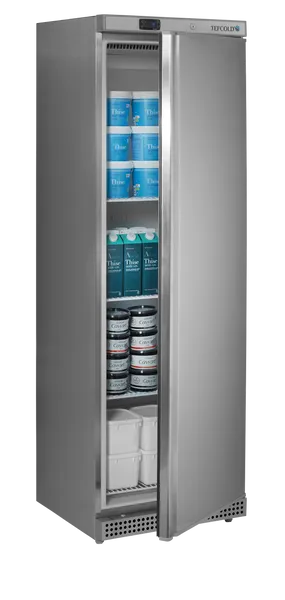

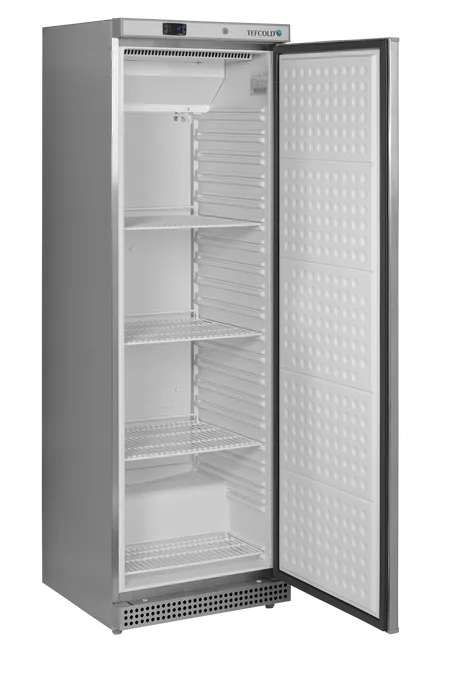

Solid Door Refrigerator

UR400X1

Item no.: 54860 (Substitution for 33851 UR400S)

This price is available until 31st January 2025, when you place your order directly through our website only.

  • Stainless steel exterior
  • Integrated handle
  • Reversible solid door
  • Fan assisted cooling
  • Adjustable shelves
  • Digital controller and temperature display
  • Adjustable feet with rollers to rear
  • Lock
Energy arrow
Product Sheet
  • Next day delivery available on product
  • Unpack & Position
    £ 35.00
  • Remove & Dispose
    £ 69.00
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -2 to +8 °C
  • Climate Class
    4
  • Gross / Net Weight
    82 / 77 kg
  • Gross / Net Volume
    361 / 350 l

Design and Material

  • Feet / Legs
    2 adjustable feet
  • Castors
    2 rollers
  • Exterior Finish
    SS430
  • Interior Finish
    White
  • Interior Light
    No
  • Lock
  • Door Number & Type
    1 hinged solid door
  • Shelves Number & Type
    4 wire shelves white
  • Shelf Color
    White
  • Shelf Dimensions
    503 x 415 mm
  • Max load on Shelves
    110 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Fan assisted
  • Type of Defrost
    Automatic-Off Cycle
  • Refrigerant
    R600a
  • Refrigerant Charge
    70 g

Power and Consumption

  • Energy Class
    A
  • Energy Consumption
    0.65 kWh/24h
  • Annual Energy Consumption
    237 kWh/year
  • Input Power
    80 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    45 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    510 x 485 x 1620 mm
  • External Dimension (WxDxH)
    600 x 615 x 1855 mm
  • Packed Dimension (WxDxH)
    680 x 680 x 2100 mm
  • 40ft Container Load
    51 pcs
  • GTIN / EAN
    5708181740443
  • Product Group - Delivery services
    Group 2

Downloads

Description

Spare parts

  • 1
    Top Hinge
    Item no. 12952Top Hinge
  • 2
    Hook Of Lock
    Item no. 10670Hook Of Lock
  • 4
    Item no. 34876Front panel Grey 2021
  • 5
    Hinge Axis
    Item no. 12857Hinge Axis
  • 6
    Bushing For Diameter 6,6 mm Pin
    Item no. 12781Bushing For Diameter 6,6 mm Pin
  • 7
    Item no. 32775Lock
  • 8
    Item no. 34880Front panel Grey 2021
  • 9
    Item no. 54070Bottom Hinge Right
  • 10
    Item no. 34892Door SS 2021
  • 11
    Item no. 15170Upper Shelf 505x415
  • 12
    Fan Power Supply 12VDC 8 W
    Item no. 33015Fan Power Supply 12VDC 8 W
  • 13
    Bottom Shelf 505x220
    Item no. 14886Bottom Shelf 505x220
  • 14
    Evaporator Fixer
    Item no. 14439Evaporator Fixer
  • 15
    Item no. 14263Evaporator
  • 17
    Adjustable Feet
    Item no. 14555Adjustable Feet
  • 22
    Item no. 54904Compressor (R600a)
  • 23
    Item no. 14077Block Condenser
  • 24
    Item no. 54093Roller
  • 24
    Item no. 54994Roller spindle
  • 26
    Rear Grill Before 2024
    Item no. 11233Rear Grill Before 2024
  • 26
    Item no. 55145Rear Grill From 2024
  • 28
    Item no. 54906Condenser
  • 29
    Sensor Fixed Clip
    Item no. 13913Sensor Fixed Clip
  • 30
    Fan Support, March 2014
    Item no. 13554Fan Support, March 2014
  • 31
    Probe NTC Dixell/Carel 10 Kohm
    Item no. 13896Probe NTC Dixell/Carel 10 Kohm
  • 31
    Item no. 51615Sensor
  • 32
    Item no. 32425Evaporator Fan 12 VDC
  • 33
    Bottom Panel Hexagonal SS430
    Item no. 10875Bottom Panel Hexagonal SS430
  • 34
    Thermostat
    Item no. 32623Thermostat
  • 35
    Item no. 53956Filter Drier
  • 36
    Item no. 53959Drain Hose
  • 37
    Item no. 53960Drain Pipe
  • 38
    Item no. 10905Bottom Support
  • 39
    Item no. 54796Door Switch
  • 40
    Bottom Hinge
    Item no. 12743Bottom Hinge
