Divider as option
Well suited for graphics

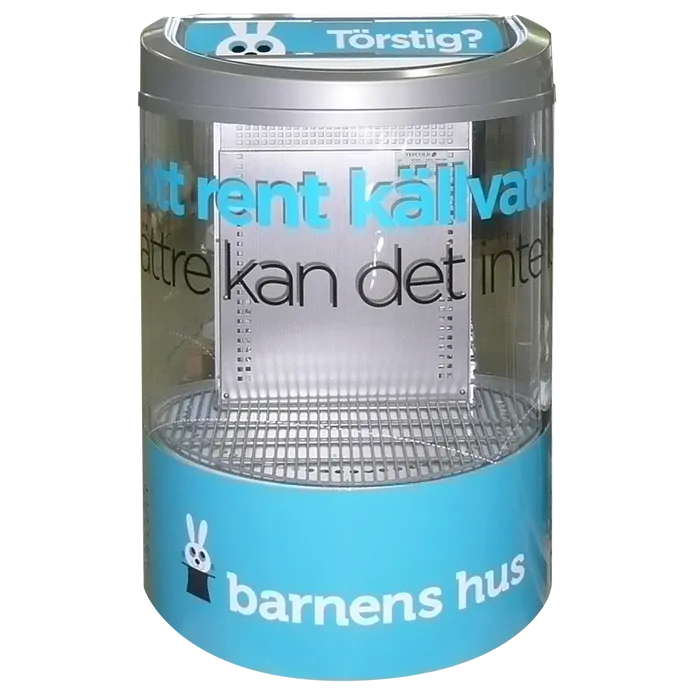

Impulse Can Cooler

VOC100

Item no.: 20010 (Substitution for )

Fully automatic
Fan assisted cooling
LED canopy light
Adjustable feet
Digital controller and temperature display

Product Sheet

Next day delivery available on product
Unpack & Position
£ 35.00
Remove & Dispose
£ 64.00

Check Delivery Options and Services

Technical specifications

Measures and Content

Cans 330 ml
80 pcs
Cans 500 ml
50 pcs
Bottles 330 ml
50 pcs
Bottles 500 ml PET
50 pcs
Total Display Area
0.75 m²
Temperature Range
+2 to +12 °C
Climate Class
4
Gross / Net Weight
31 / 29 kg
Gross / Net Volume
110 / 103 l

Design and Material

Feet / Legs
7 gliding feet
Exterior Finish
Grey
Interior Finish
Grey
Interior Light
LED

Cooling and Functions

Type of Controller
Electronic
Type of Cooling
Ventilated
Type of Defrost
Off Cycle
Refrigerant
R600a
Refrigerant Charge
55 g
Thermometer

Power and Consumption

Energy Class
D
Max Ambient
30°C at 55% RH
Energy Consumption
2.6 kWh/24h
Annual Energy Consumption
949 kWh/year
Input Power
160 W
Voltage / Frequency
220-240/50 V/Hz
Noise Level
42 dB(A)

Dimensions

Internal Dimension (WxDxH)
520 x 345 x 570 mm
External Dimension (WxDxH)
660 x 460 x 970 mm
Packed Dimension (WxDxH)
700 x 500 x 1150 mm
40ft Container Load
128 pcs
GTIN / EAN
5708181001117
Product Group - Delivery services
Group 1

Downloads

Description

The VOC100 is a small spot merchandiser ideal for impulse purchases at checkout and till areas. Maximise your drinks sales to customers by grabbing those extra impulse purchases to boost profits.

Spare parts

1
Item no. 11131Inner Lexan 1 mm
2
Item no. 11192Outer Lexan 1 mm
3
Item no. 10369Air Conductor Grey
4
Item no. 15773Insulation Material
5
Item no. 10794Base Plate
6
Item no. 10773Back Panel Grey
7
Item no. 10857Bottom Panel Grey 345 mm
8
Item no. 10795Base Spacers
9
Item no. 10922Compressor Base Plate
10
Item no. 14590Gliding Shoe
10
Item no. 14677Wheel Without Brake
11
Item no. 10285Canopy Plate
12
Item no. 11291Top Frame
13
Item no. 10791Base For Top Frame
14
Item no. 13969Thermostat Carel PYSN0V00115
14
Item no. 14060Thermostat XR02CX 2 Probe Blue
15
Item no. 15650LED Strip 580 mm 7000K/7LM
16
Item no. 15612LED Power Supply
17
Item no. 14860Base Shelf Grey
18
Item no. 11213Profile For Lexan
19
Item no. 14445Evaporator House
20
Item no. 14453Evaporator Polystyrene
21
Item no. 14239Evaporator
22
Item no. 14423Evaporator Cover Polystyrene
23
Item no. 14424Evaporator Cover Sheet
24
Item no. 11727Compressor HMK12AA R600
25
Item no. 15729Filter Drier 7.5 G
26
Item no. 13896Probe NTC Dixell/Carel 10 Kohm
28
Item no. 11436Drain Hose
29
Item no. 13530Fan Motor Foot
30
Item no. 13519Fan Motor
31
Item no. 13483Fan Blade 200 mm
32
Item no. 13577Inner Fan
33
Item no. 14091Condenser
34
Item no. 15515Holder For LED Strip
35
Item no. 14777Divider Grey RAL 9006
36
Item no. 14742Base Shelf For Dividers Black
36
Item no. 14743Base Shelf For Dividers Grey
36
Item no. 14744Base Shelf For Dividers White
37
Item no. 14822Small Divider Black
37
Item no. 14823Small Divider Grey
37
Item no. 14824Small Divider White
38
Item no. 14746Big Divider Black
38
Item no. 14747Big Divider Grey
38
Item no. 14748Big Divider White
99
Item no. 38401LED Light Curved 2700K 6,48 W
